Fiber HR Trio

The first fiber coupled diode laser with triple wavelength 808nm, 755nm and 1064nm in the world

Applications: Hair Removal, Pigment, Skin Dent, Nevus etc.

  • Over 50 million shots’ lifespan
  • Uniform energy distribution
  • 4 treatment mode and professional software
  • Light hand piece and Sapphire contact cooling
  • 3 spot sizes(12mm, 60mm, 4mm) with more Applications( New handle)
Request Info

Overview

Fiber HR Trio is latest fiber coupled diode laser with triple wavelength 808nm, 755nm and 1064nm launched by Shenzhen LeafLife Tech. Co., Ltd. Continued with stable and durable characters of FCD technology, by incorporating multiple laser wavelengths and technologies, Fiber HR Trio allows practitioners to treat the widest range of patients and hair types all year round, administer treatments quickly and comfortably and achieve the best possible clinical results.

Blond hair on light skin can be treated with more obvious effect, even dark skin get safe and more comfortable operation, also better and faster result.

Update power to 800W, better efficiency and hair removal result. Fiber HR Trio is the most complete and effective laser hair removal solution available today.

1.  Real fiber of 200W/pic and 4 pics of fiber.

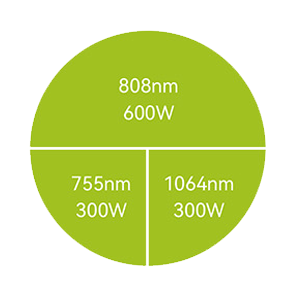

2. Customized option of laser generator: 808nm+755nm combination (400W+400W) / 808nm+1064nm combination (400W+400W)

Technology

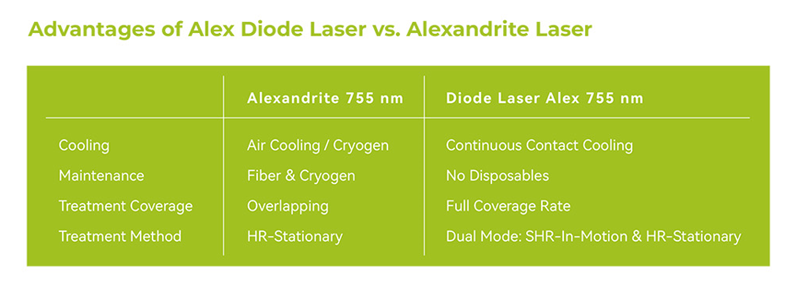

808nm diode laser provides an ideal solution for the widest range of hair types and skin color. 755nm diode laser is proved most suitable design especially for light-colored and thin hair.





Diode laser based on an ND: YAG wavelength 1064nm, allowing for moderate energy absorption by the melanin chromophore. This absorption level combined with the contact cooling, treatment coverage, comfort and low maintenance of the diode laser, provides a focused solution for darker skin types.

Features and Advantages


Vertical laser stack has narrow cooling channel, high heat flux but low heat capacity, so it easily has thermal damage like bars’ burning caused by water shortage, over heat or over current etc. And it easily show cavity surface damage caused by moisture condensation, dusk and channel blockage. So usually normal diode laser’s working temperature should be low, need consumable like filter on time, the lifespan max. is 5 to 10 million shots with very high cost for future use. But Fiber HR of fiber coupled diode laser solve all the above common technology defect, it can work in high temperature even 45℃ and moisture environment, protect core laser generator never happen problem caused by thermal damage, so prolong the lifespan of hand piece to 50 million shots and two years’ guarantee. No any consumable like filter at all, need not change high hand piece every year, most economical diode laser machine in the market.


No laser generator in hand piece, so need not worry the damage to high hand piece caused by not careful use. The hand piece is much lighter and more comfortable for lady operator and long term operation. Sapphire contact cooling protect epidermis well and ensure safe and comfortable treatment though under high energy use. Cooling temperature keep 0℃ to 5℃.




Fiber coupled diode laser is designed with a uniform energy distribution at a small divergence angle for more gentle and effective depilation.




Repeat mode use relatively lower energy but high frequency 10HZ, sliding on skin reach fast operation especially for big skin area, accumulated energy by more times's sliding ensure treatment effect but comfortable for epidermis.
Stamp mode is suitable for small area treatment, shortest interval can be 0.8s, safe and efficient.
Classic mode give user ready scientific parameters based on different skin types, hair color and hair types, refined and convenient operation.
Custom mode let professional user choose experienced and full parameters like pulse width etc. High energy range 100J meet all the patient's need. Saving function save the habitual parameters for direct use after turning on machine.





Supplier know machine's situation clearly, remote after sales services conveniently.

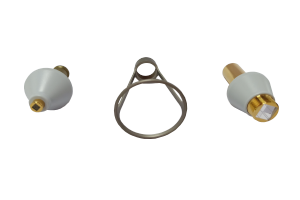

Hair removal hand piece is 12mm of spot size, which is suitable for fast and stamp operation. 4mm of spot size treat pigment, skin dent, nevus etc. more skin problem. 60mm of big spot size has very nice effect for body pain relief. Just change tip to change the spot size and functions. Platform equipment realize more applications and treatment project.




Operator can read being used parameters directly during the operation.

Before&After

  • Demo Image
  • Demo Image
  • Demo Image
  • Demo Image

Parameters

Laser type
Fiber Coupled Diode Laser
Wavelength
808nm, 755nm, 1064nm
Laser power
800W
Pulse width
5-800ms
Energy density
1-100J/cm2
Frequency
1-10Hz
Skin type
I-VI
Operation mode
Repeat, Stamp, Classic, Custom
Screen
10inch LCD
Spot size
12mm*12mm; 4mm; 60mm
Cooling type
Sapphire contact cooling
Cooling temperature
≤5℃
Size
650*430*315 mm
Net weight
22KG
