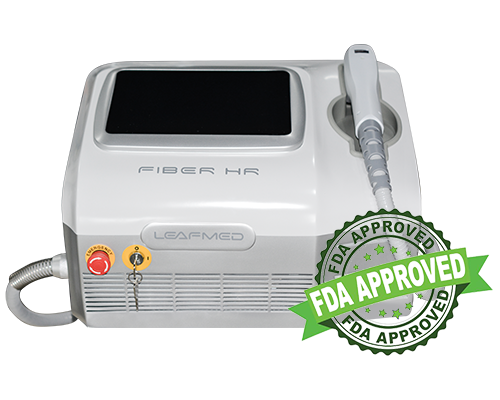

FDA Approved Portable Fiber Coupled Diode Laser Hair Removal Machine – Fiber HR

$13,800.00

Applications: Hair Removal, Pigment, Skin Dent, Nevus etc.

  • FDA Approved, Medical CE ISO13485
  • Over 50 million shots’ lifespan
  • Uniform energy distribution
  • 4 treatment mode and professional software
  • Light hand piece and Sapphire contact cooling
  • 3 spot sizes(12mm, 60mm, 4mm) with more Applications( New handle)





Description

Overview

Fiber HR is latest portable 640W 810nm fiber coupled diode laser for hair removal and more applications, compared with normal diode laser, Fiber HR put laser generator in machine inside not in hand piece. So energy and heat transfer are released by fiber. Normal diode laser’s hand piece is heavy, expensive but frail, but Fiber HR’s is light and strong. So its hand piece can reach much longer lifespan 50 million shots, is durable with nothing consumable.
Latest designed screen has four treatment mode, fast, stamp, classical and custom mode, which meet more types of users’ operation by professional and full parameters. Fiber HR can add two more spot sizes of 4mm and 60mm for more applications like moles, pigment and pain relief treatment etc.

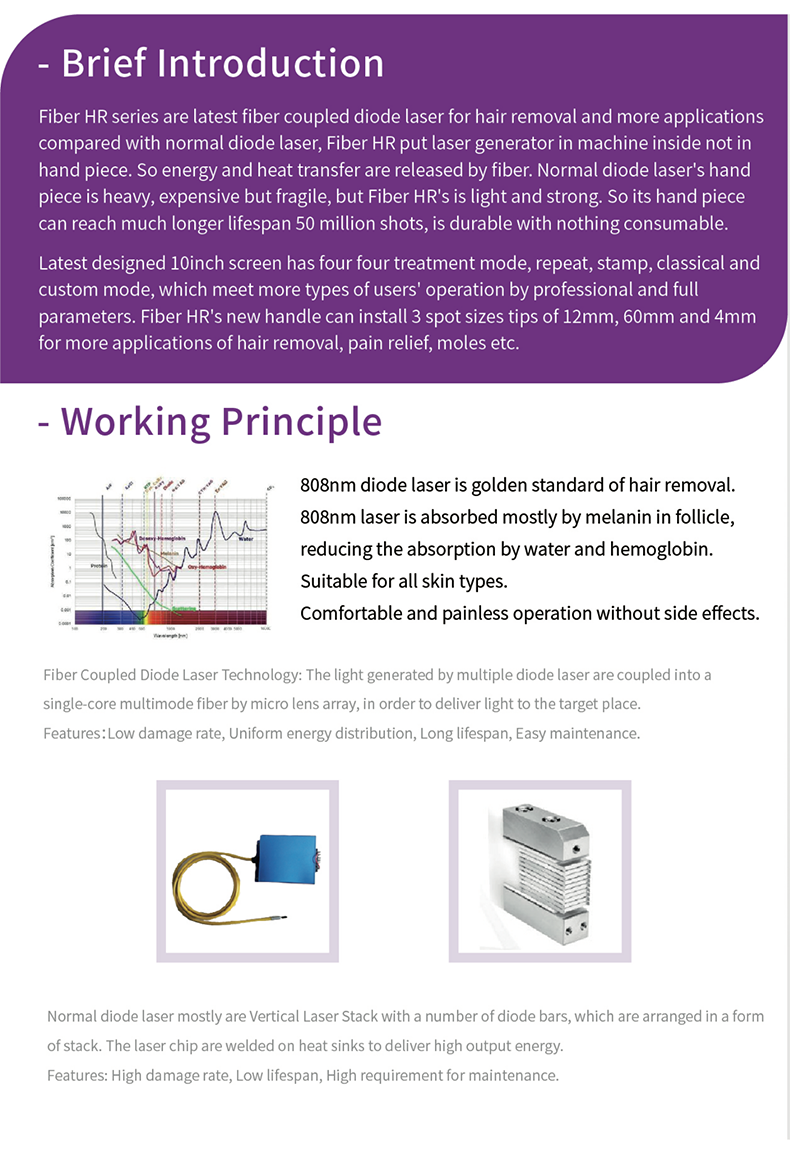

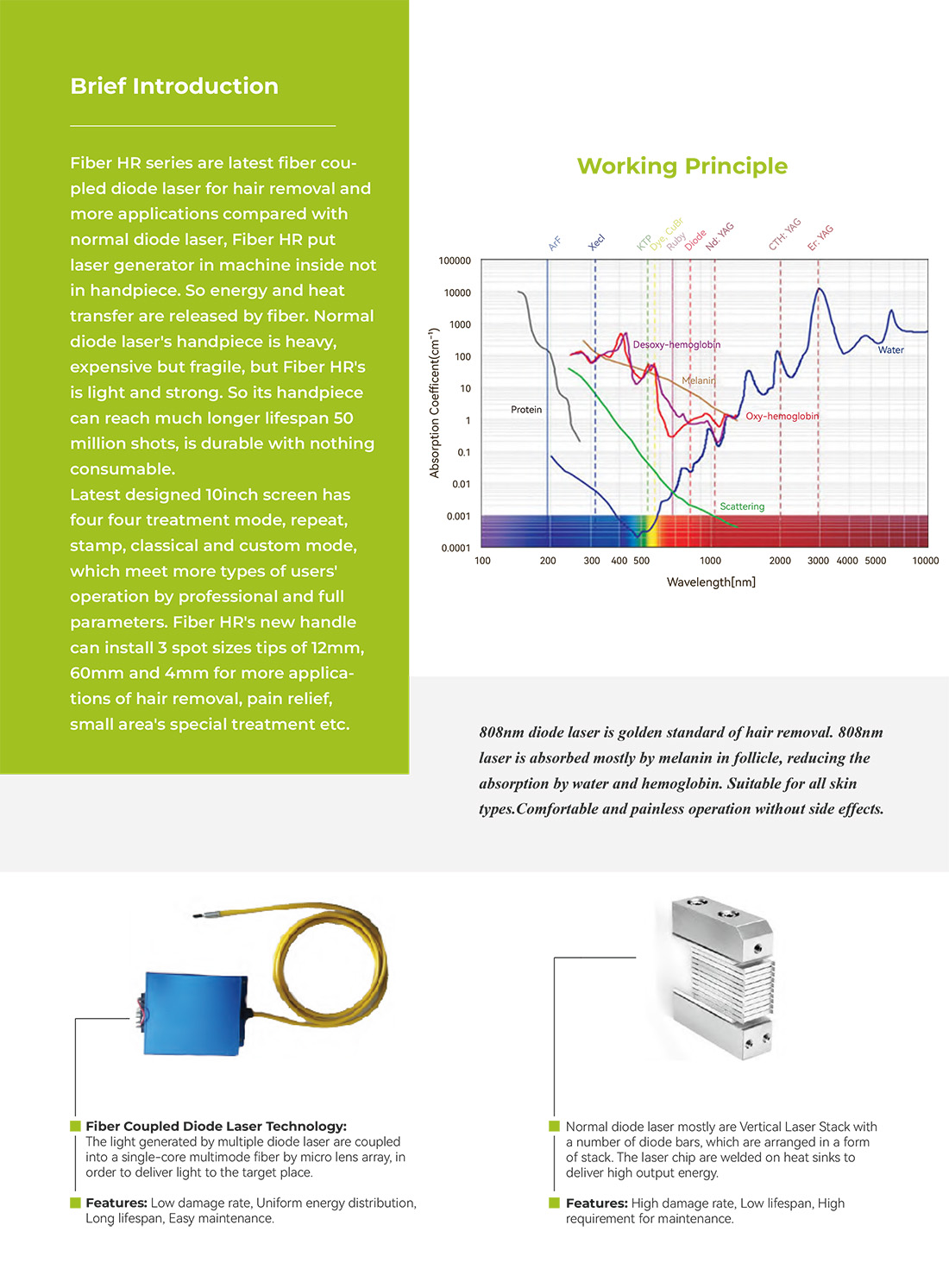

Fiber Coupled Diode Laser Technology

The light generated by multiple diode laser are coupled into a single-core multimode fiber by micro lens array, in order to deliver light to the target place.
Features:Low damage rate, Uniform energy distribution, Long lifespan, Easy maintenance.
Normal diode laser mostly are Vertical Laser Stack with a number of diode bars, which are arranged in a form of stack. The laser chip are welded on heat sinks to deliver high output energy.
Features: High damage rate, Low life span, High requirement for maintenance.

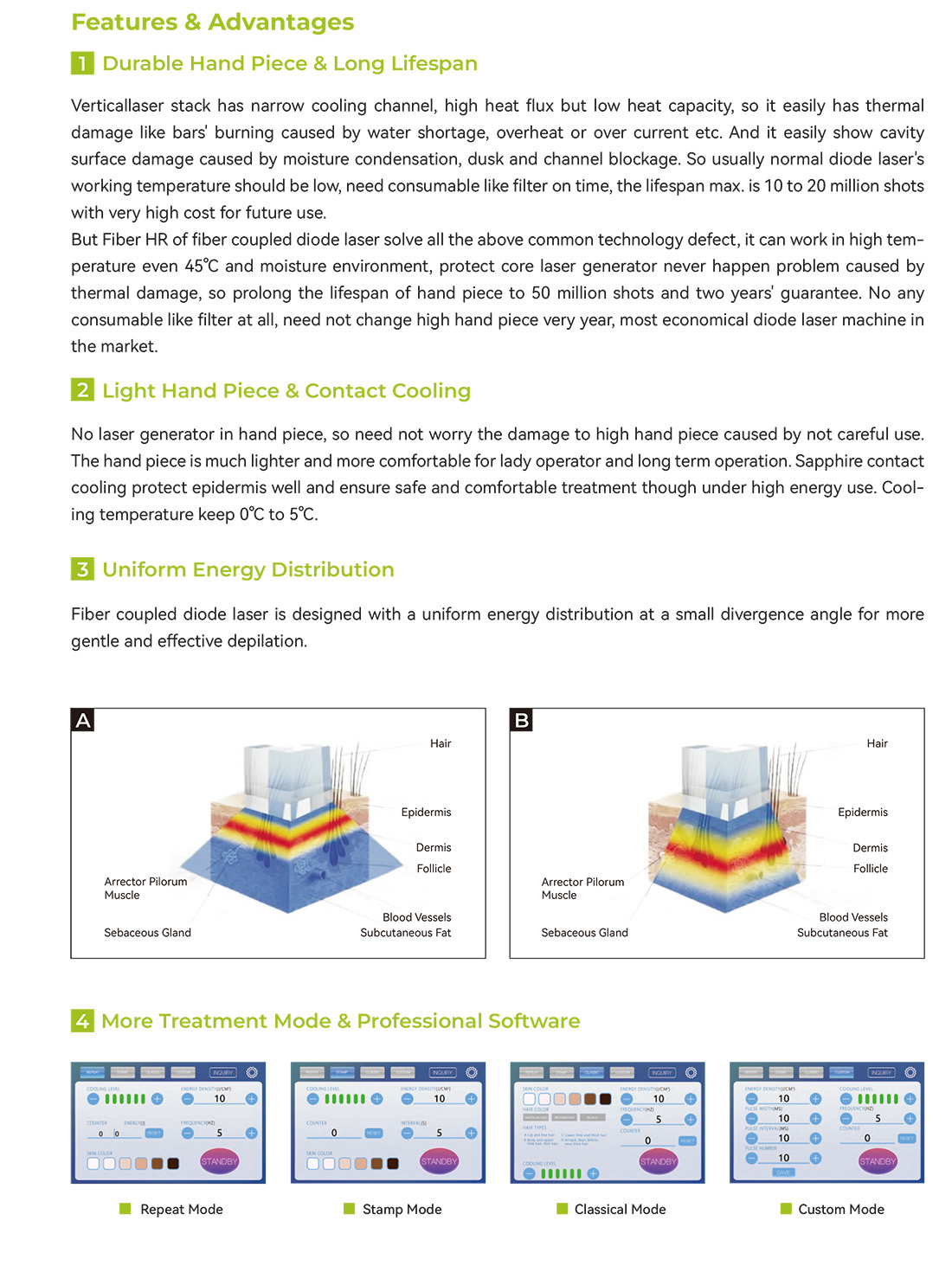

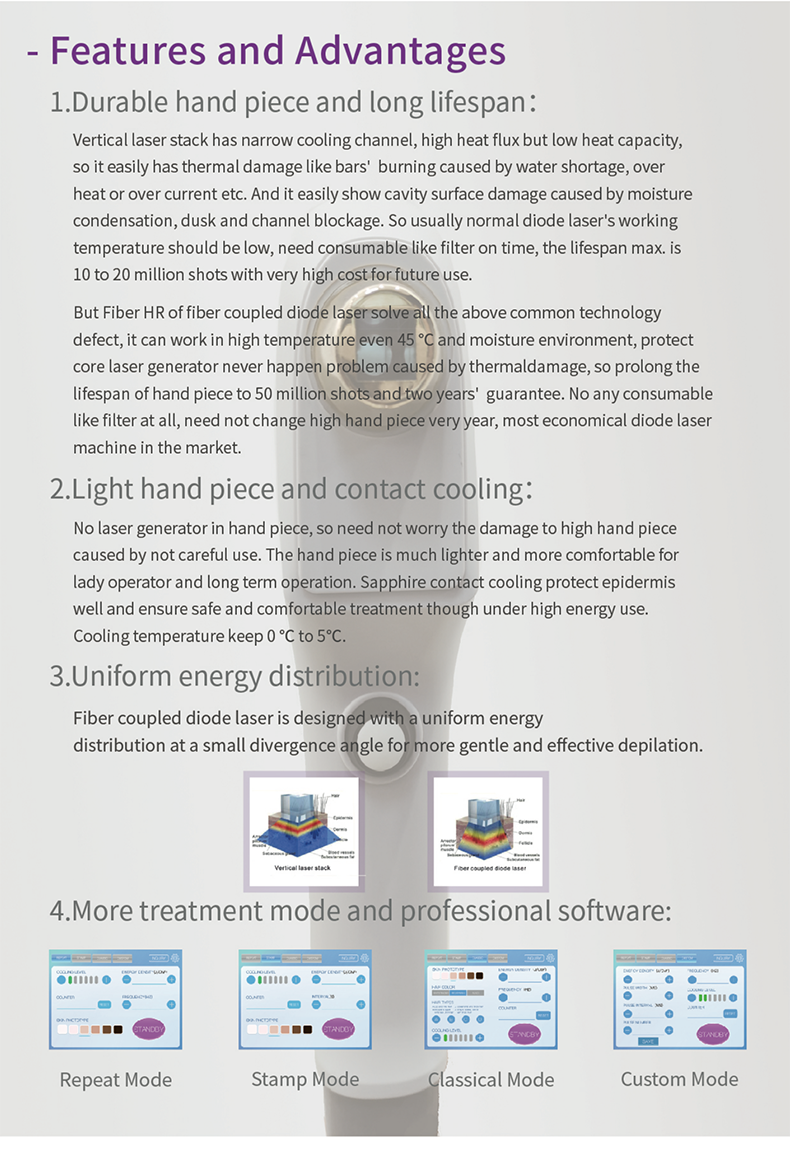

Features and Advantages

1. Durable hand piece and long lifespan

Vertical laser stack has narrow cooling channel, high heat flux but low heat capacity, so it easily has thermal damage like bars’ burning caused by water shortage, over heat or over current etc. And it easily show cavity surface damage caused by moisture condensation, dusk and channel blockage. So usually normal diode laser’s working temperature should be low, need consumable like filter on time, the lifespan max. is 5 to 10 million shots with very high cost for future use. But Fiber HR of fiber coupled diode laser solve all the above common technology defect, it can work in high temperature even 45℃ and moisture environment, protect core laser generator never happen problem caused by thermal damage, so prolong the lifespan of hand piece to 50 million shots and two years’ guarantee. No any consumable like filter at all, need not change high hand piece every year, most economical diode laser machine in the market.

2. Light hand piece and contact cooling

No laser generator in hand piece, so need not worry the damage to high hand piece caused by not careful use. The hand piece is much lighter and more comfortable for lady operator and long term operation. Sapphire contact cooling protect epidermis well and ensure safe and comfortable treatment though under high energy use. Cooling temperature keep 0℃ to 5℃.

3. Uniform energy distribution

Fiber coupled diode laser is designed with a uniform energy distribution at a small divergence angle for more gentle and effective depilation.

4. More treatment mode and professional software

Repeat mode use relatively lower energy but high frequency 10HZ, sliding on skin reach fast operation especially for big skin area, accumulated energy by more times’s sliding ensure treatment effect but comfortable for epidermis.
Stamp mode is suitable for small area treatment, shortest interval can be 0.8s, safe and efficient.
Classic mode give user ready scientific parameters based on different skin types, hair color and hair types, refined and convenient operation.
Custom mode let professional user choose experienced and full parameters like pulse width etc. High energy range 100J meet all the patient’s need. Saving function save the habitual parameters for direct use after turning on machine.

5. WIFI internet connection(Optional)

Supplier know machine’s situation clearly, remote after sales services conveniently.

6. More spot sizes and Applications(New handle)

Hair removal hand piece is 12mm of spot size, which is suitable for fast and stamp operation. 4mm of spot size treat pigment, skin dent, nevus etc. more skin problem. 60mm of big spot size has very nice effect for body pain relief. Just change tip to change the spot size and functions. Platform equipment realize more applications and treatment project.

7. Small window design on hand piece

Operator can read being used parameters directly during the operation.



Before&After

Parameters

Laser type
Fiber Coupled Diode Laser
Wavelength
810nm
Laser power
640W
Pulse width
5-800ms
Energy density
1-100J/cm2
Frequency
1-10Hz
Skin type
I-VI
Operation mode
Repeat, Stamp, Classic, Custom
Screen
10inch LCD
Spot size
12mm*12mm; 4mm; 60mm
Cooling type
Sapphire contact cooling
Cooling temperature
≤5℃
Size
650*430*315 mm
Net weight
22KG
